Getting Started with Flux for EECS 470

PBS and Useful Tools

Working with batch jobs can be challenging. It's important to have a solid understanding of the tools available, and, even more importantly, to know where to find more information when necessary.

There's a great list of common commands provided by CAC available online at:

This section attempts to quickly cover the basics of PBS to get you up and running ASAP.

1. Submitting jobs with qsub

qsub allows you to submit new jobs. A super brief example of this was shown in the previous section.

A quick view of the man page (man qsub) reveals a frightening number of flag modifiers:

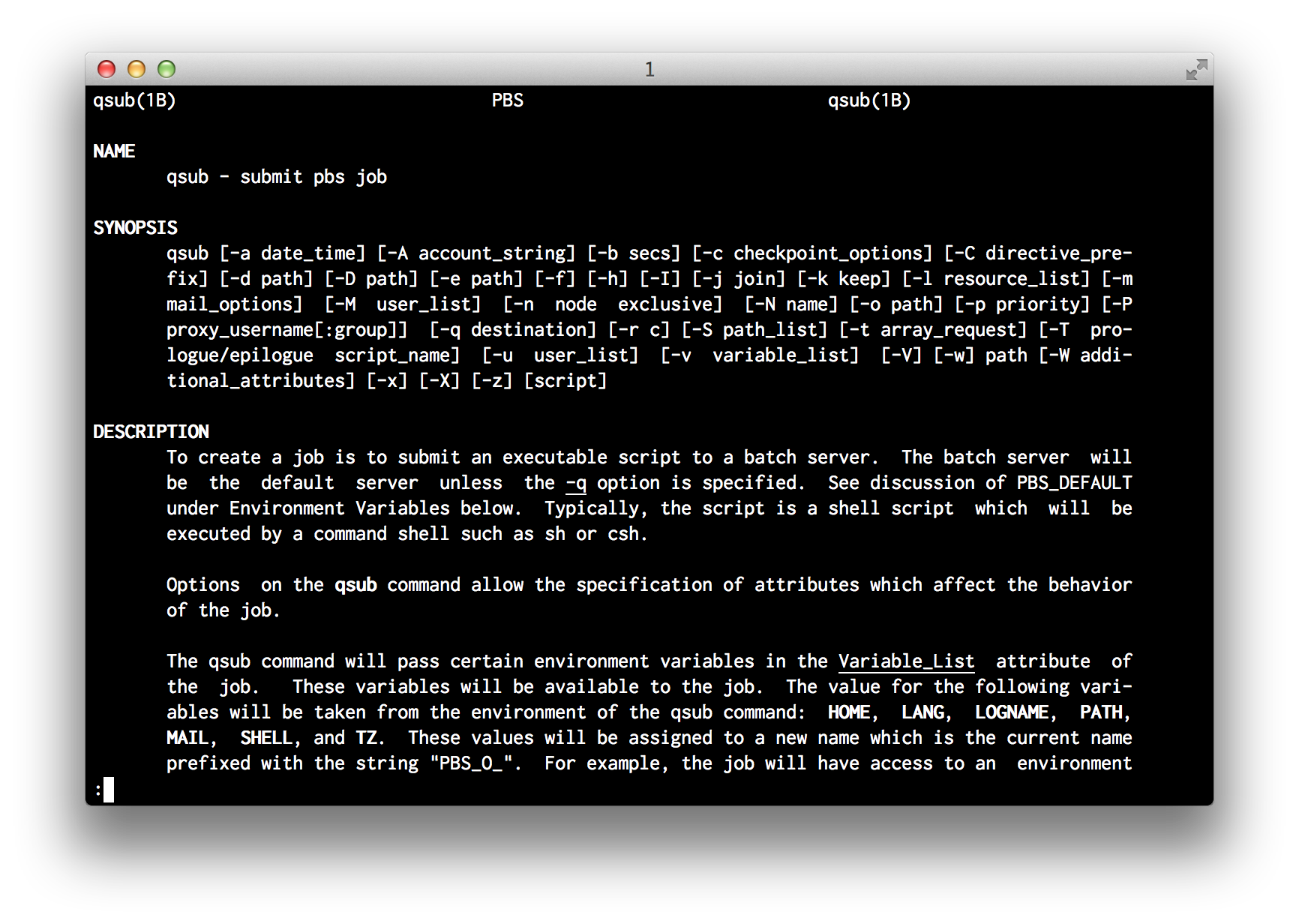

qsub man page

While most flags are optional, all jobs must specify Queue (-q), Account (-A), and Quality of Service (QOS) (-l qos=[name]). Hopefully this seems familiar and you've realized that those strange comments in our hello-world-job.sh script were simply a different way to pass these required job attributes to the scheduler. We could submit the original "Hello World" script (shown below) using qsub hello-world-job.sh, or we could remove all those comment directives and pass them into the qsub command directly.

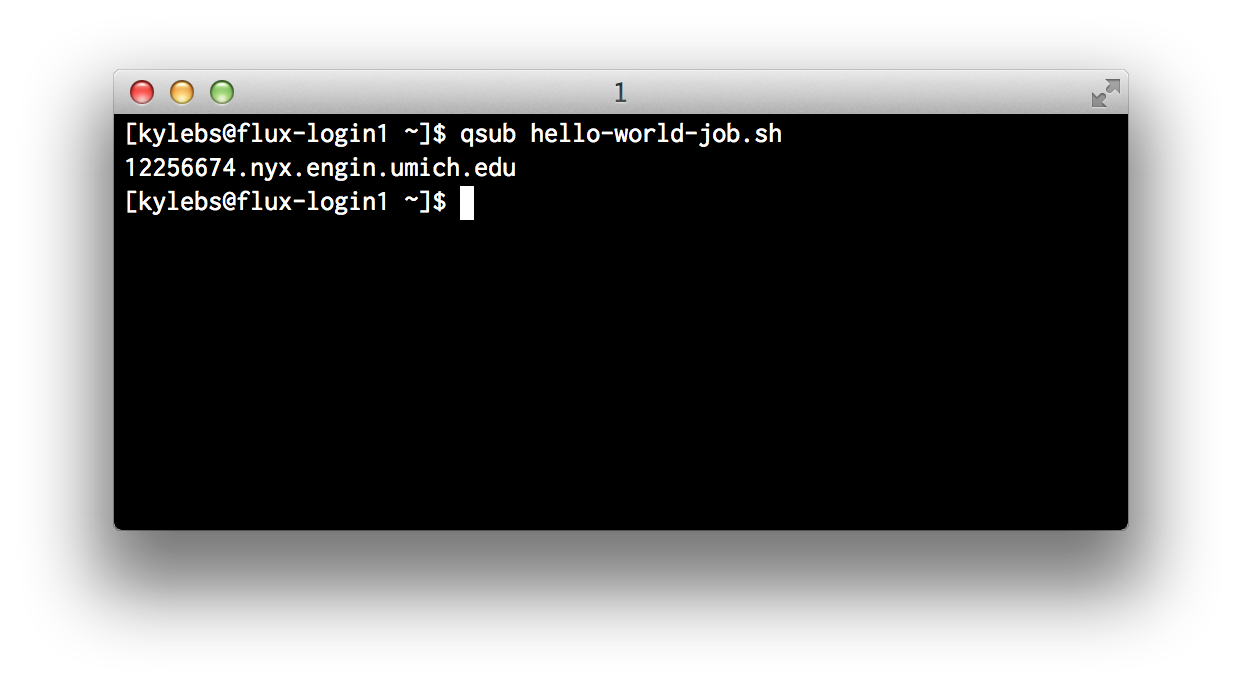

On a successful call to qsub, the job ID is returned to STDOUT: qsub submit result

Using in-file comment directives

#!/bin/bash
##### The original hello-world-job.sh script
#PBS -A brehob_flux
#PBS -l qos=flux
#PBS -q flux

echo "Hello World!"

Submit hello-world-job.sh using: qsub hello-world-job.sh. OR use the modified verison below:

$ qsub hello-world-job.sh

Using command-line flags

#!/bin/bash
##### hello-world-job-nocomments.sh with the comment directives removed
echo "Hello World!"

And submit hello-world-job-nocomments.sh using: qsub -A brehob_flux -l qos=flux -q flux hello-world-job-nocomments.sh

$ qsub -A brehob_flux -l qos=flux -q flux hello-world-job-nocomments.sh

Which way is best?

There's no good answer. If you have a job that will always be submitted with the exact same attributes and doesn't need to be flexible, why not hardcode them to prevent dumb mistakes? If you want to be able to invoke the job script from a "helper" script (like our pre-sub.sh script from earlier), then you'll need to use command line flags, as the comment directives won't allow for variable expansion (because they're comments).

2. Checking jobs with qstat

qstat allows you to check the status of submitted jobs. Running with no args is practically useless as it will dump every job on every queue from every user. There are two cases where you'll commonly use qstat:

  • Check the status of a specific job
  • View all of your jobs

Checking a Specific Job (By Job ID)

# check a specific job with ID 12256674
$ qstat 12256674

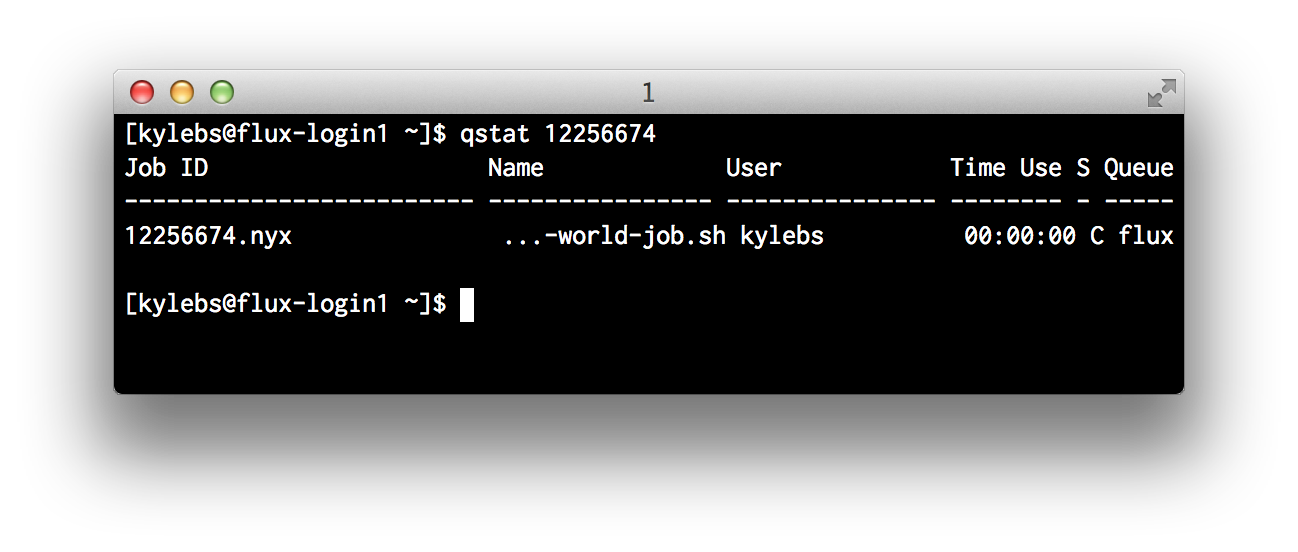

qstat check specific job

As you can see, qstat gives us back some basic information about the requested job:

  • Job ID
  • Job Name (specified with -N [name])
  • User that submitted the job
  • Time Use (for currently-running jobs, the amount of time the job has been running)
  • S, or Status (Primary states are: C for completed, Q for queued, and R for running. See the man page for a list of all possible states)
  • Queue describes which worker queue the job was submitted to

Checking All Jobs For a User

# check all jobs for a specific user, you!
$ qstat -u $USER

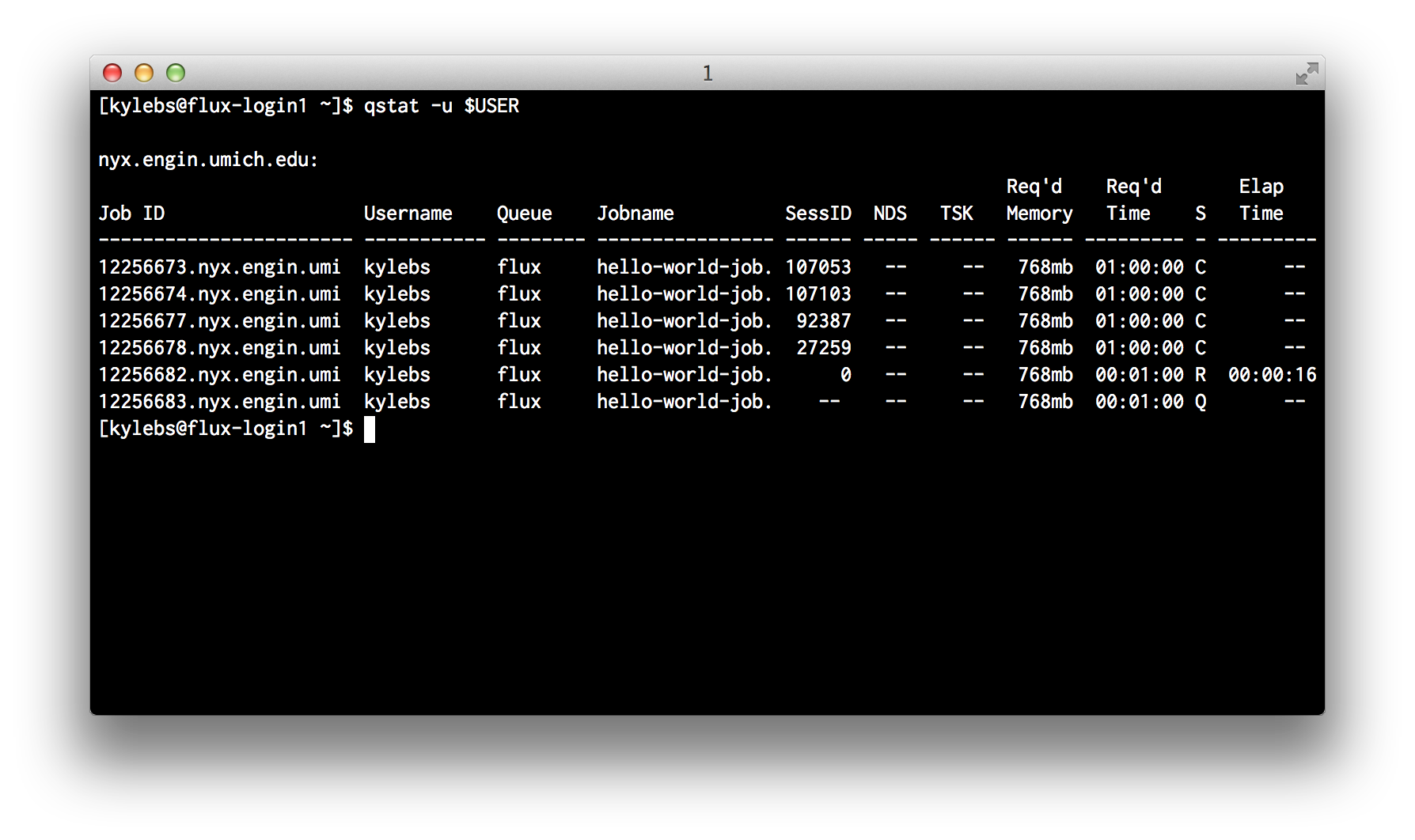

qstat check user jobs

Very similar to the specific job status shown above but with some re-wording and the addition of:

  • SessID, or SessionID (I have no idea what this is for)
  • NDS, or Number of Nodes (specify with -l nodes=X)
  • TSK, or Number of Tasks (CPUs) (specify with -l procs=X or -l nodes=X:ppn=Y where ppn stands for "Processors Per Node")

3. Introspect running jobs with qpeek

Often times, it's useful to be able to check on a long-running process to make sure everything is executing as expected. A healthy mix of echo statements in your job scripts and the occasional qpeek can be indispensible when it comes down to identifying bugs in your jobs.

In the example below, I "accidentally" submit a job with an endless loop and peek in on it to see what's going on.

$ qpeek 12256691

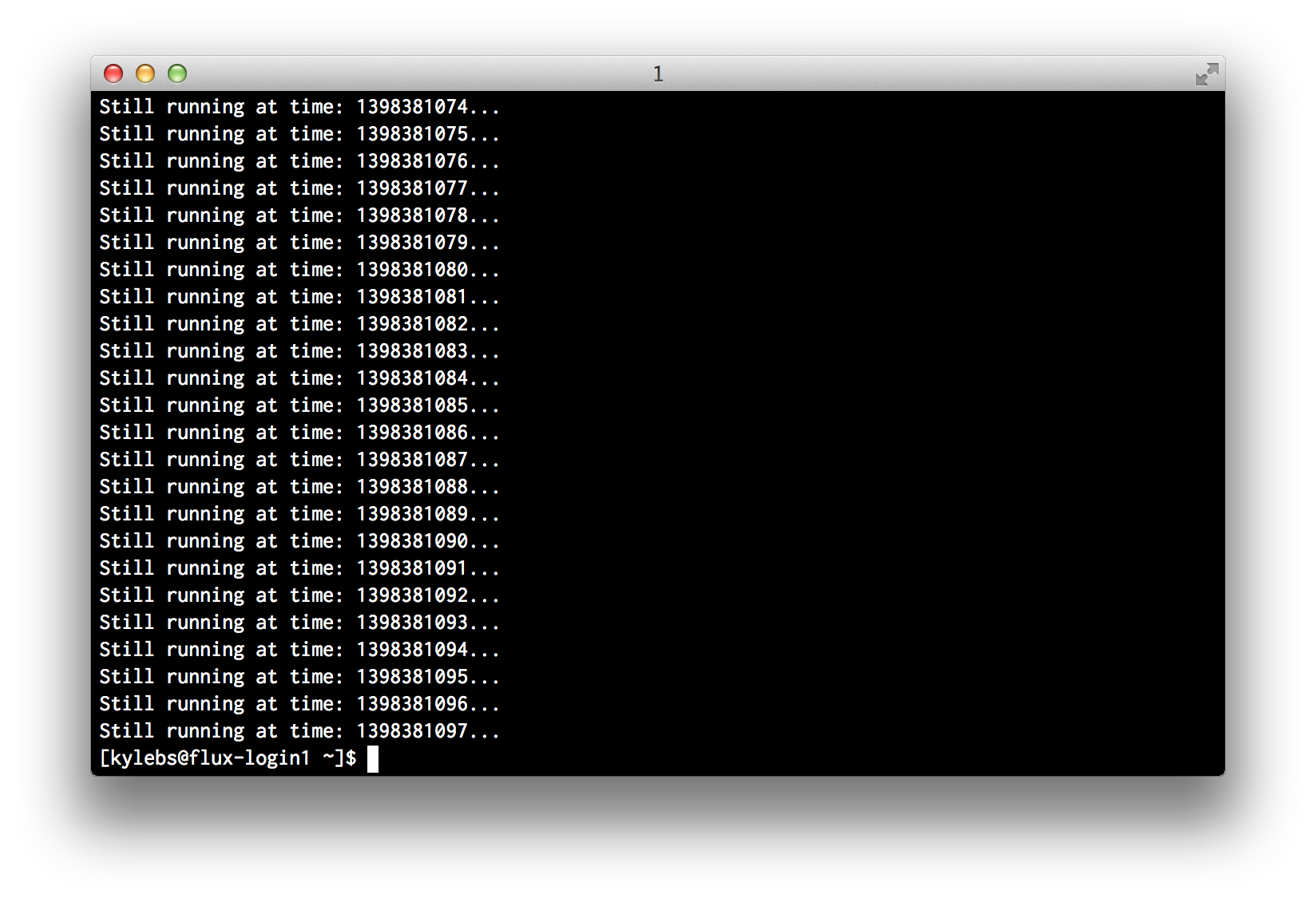

qpeek on a suspiciously long-running job

4. Cancelling jobs with qdel

Sometimes you need to cancel a job after it has been submitted. It generally doesn't matter what state the job is currently in, so long as you are the owner, you should be able to cancel it with qdel.

In the example above with qpeek, we saw that looper was mis-behaving. We can use qdel to kill that job, make the necessary changes, and resubmit:

# kill job 12256691
$ qdel 12256691

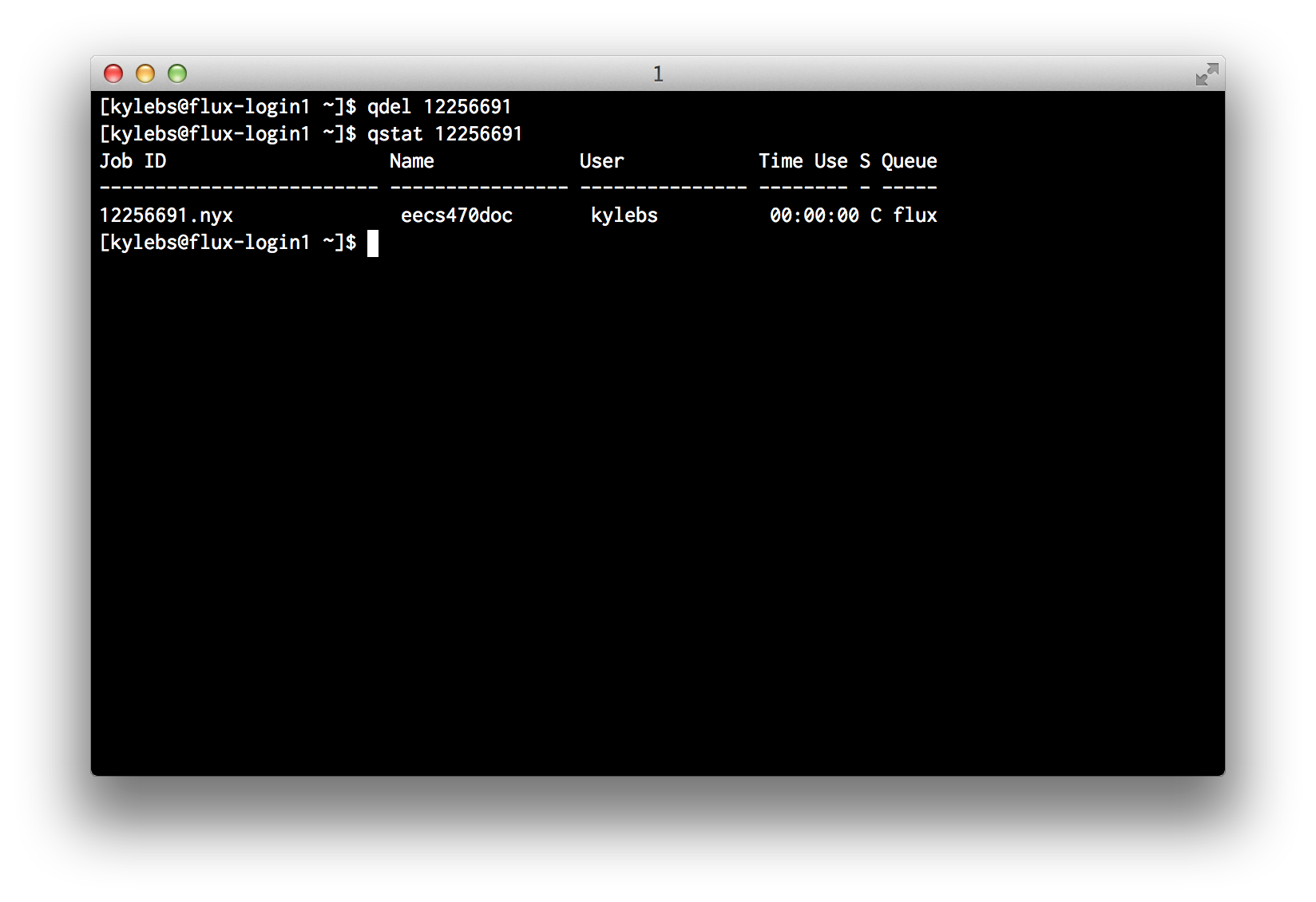

qdel kill misbehaving job

Handy One-liners

Here are a few handy bash one-liners I like to use when working with PBS:

# leave a terminal open with this running to constantly monitor my jobs
$ while [ 1 ]; do qstat -u $USER; sleep 1; done

# list all jobs in a CSV-ish format that's easy to parse
$ qstat -u $USER | grep -E '^[0-9]+' | tr -s '[:blank:]' ','

# list all jobs that aren't complete
$ qstat -u $USER | grep -vE '00 C' | grep -E '^[0-9]+'

# find all of my queued jobs and kill them
$ qstat -u $USER | grep -E '^[0-9]+' | tr -s '[:blank:]' ',' | cut -d',' -f1,10 | grep -E 'Q$' | cut -d'.' -f1 | xargs -I {} qdel {}

# find all of my running jobs and kill them
$ qstat -u $USER | grep -E '^[0-9]+' | tr -s '[:blank:]' ',' | cut -d',' -f1,10 | grep -E 'R$' | cut -d'.' -f1 | xargs -I {} qdel {}
